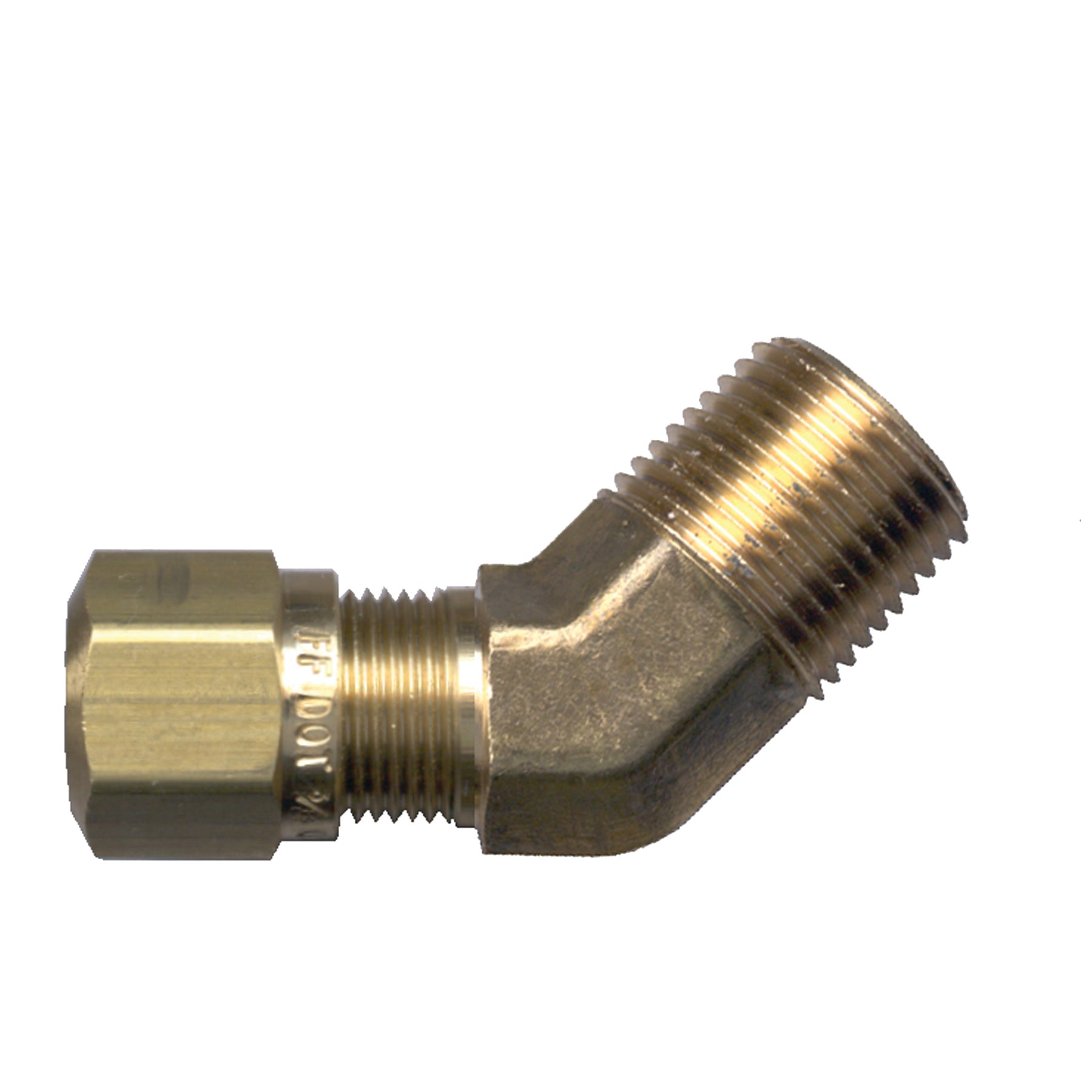

Fairview 1474-4A 45 deg DOT Air Brake Elbow, 1/4 x 1/8 in Nominal, Tube x MNPT End Style, Brass, Import
1474-4A
$3.08
Fairview DOT Air Brake Elbow, 45 deg, Series: 1474, Elbow Fitting/Connector, 1/4 x 1/8 in Nominal, Tube x MNPT End Style, 1.391 in Length, 400 psi Pressure, -65 to 250 deg F, Brass, 0.85 in W x 0.532 in H Dimensions, Import
Features
- Fairview 45 deg male Pipe Elbow air brake fittings for SAE J844D Nylon tube are only made using high quality C360 or C377 brass
- This lightweight, flexible and UV-stabilized tube is highly-resistant to abrasion, oil, grease and road salt
Specifications
| Series | 1474 |
| Material | Brass |
| Type | 45 deg |
| Dimensions | 0.85 in W x 0.532 in H |
| Length | 1.391 in |
| Domestic/Import | Import |
| Pressure Rating | 400 psi |
| Fitting Connector | Elbow |
| Temperature Rating | -65 to 250 deg F |
| Nominal Size | 1/4 x 1/8 in |
