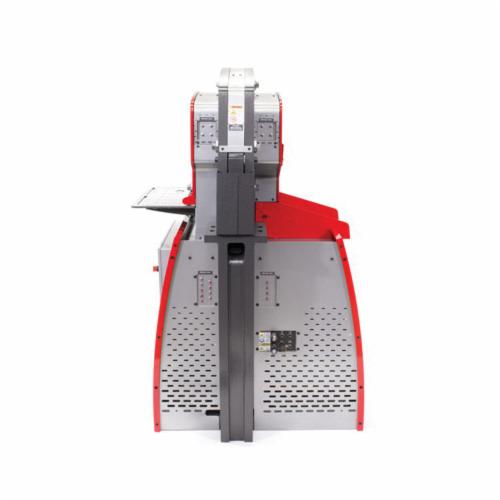

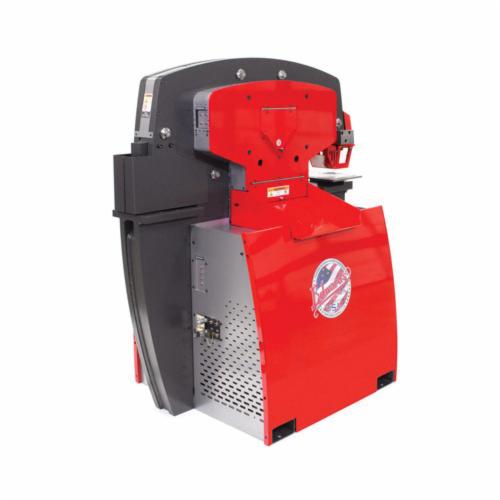

EDWARDS® ED9-ELT110-1P230 ELITE Ironworker, 110 ton Capacity, 11-3/4 in D Throat, 65000 psi Punching, 1765 rpm Speed

ELITE 110 ton offers 4 workstations and affords the ability to customize the open workstation with one of 13 attachments. 14 additional accessories can be added to further improve productivity. ELITE ironworkers have premium features integrated into their design to maximize efficiency and increase productivity. The hydraulic hold down, roller encoder measuring system, swing away stripper assembly and quick-change punch assembly are designed to increase accuracy and save time on this production machine. The standard PowerLink™ system increases your capabilities by turning your ironworker into a power source for our line of hydraulic tools.

Features

• Four workstations: (3) standard - punch, flat bar shear and angle shear, (1) open - customize your ironworker with 13 optional attachments
• 13 interchangeable attachments available to tailor the ironworker to your needs
• 14 optional accessories available to increase precision and efficiency
• Standard PowerLink™ system increases your capabilities turning your ironworker into a power source for our ever expanding line of hydraulic tools
• Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine
• Hydraulic hold down automatically secures your material in place preventing movement for quick and clean shearing on both flat bar and angle shears
• Roller encoded measuring system ensures accuracy for the flat bar shear
• Swing away stripper assembly provides quick and easy access to the quick-change punch assembly while supporting your material
• Quick-change punch assembly speeds up and simplifies the punch changing process to improve users efficiency
• The nickel plated premium gauging tables provide a large work area and add precision, speed and repeatability to your punch projects

Specifications
