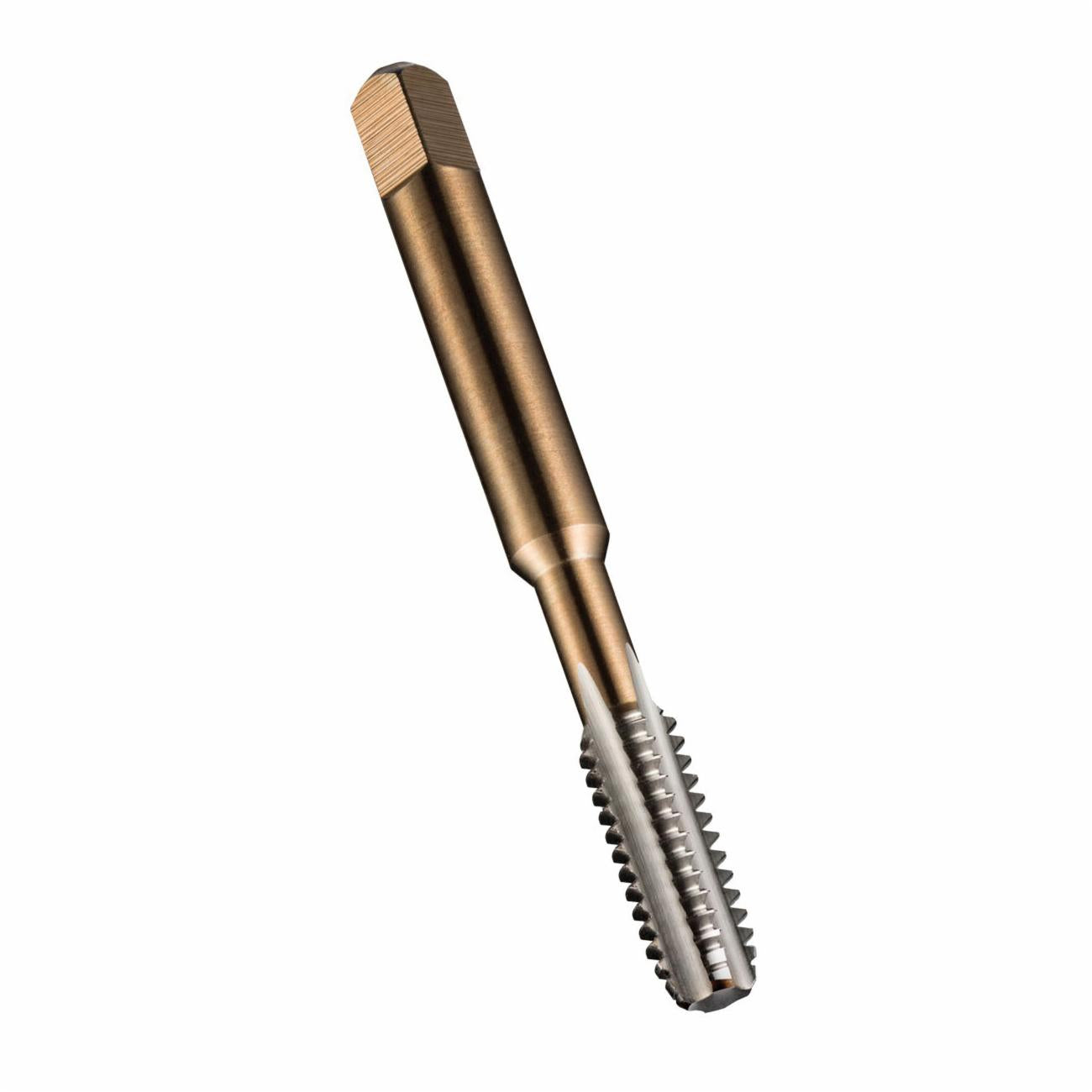

Dormer 5977102 E513 Straight Flute Tap Set, Right Hand Cutting, Bottoming/Plug Chamfer
5977102
$74.70
Dormer Tap Set, Straight Flute, Series: E513, Measurement System: Metric, 2 Piece, M6x0.75, Ground/UNF, 13 mm Thread Length, 66 mm Overall Length, 3 Flutes, Right Hand Cutting, Class of Fit: 6H, 5.3 mm Shank Dia, Bottoming/Plug Chamfer, 5.3 mm Tap Drill, 6.3 mm Square Size, HSS, Bright
Features
- The most versatile taps for hand use or machine tapping in a wide variety of materials
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
Specifications
| Overall Length | 66 mm |
| Series | E513 |
| Size | M6x0.75 |
| Material | HSS |
| Measurement System | Metric |
| Type | Straight Flute |
| Thread Length | 13 mm |
| Cutting Direction | Right Hand |
| Number of Flutes | 3 |
| Number of Pieces | 2 |
