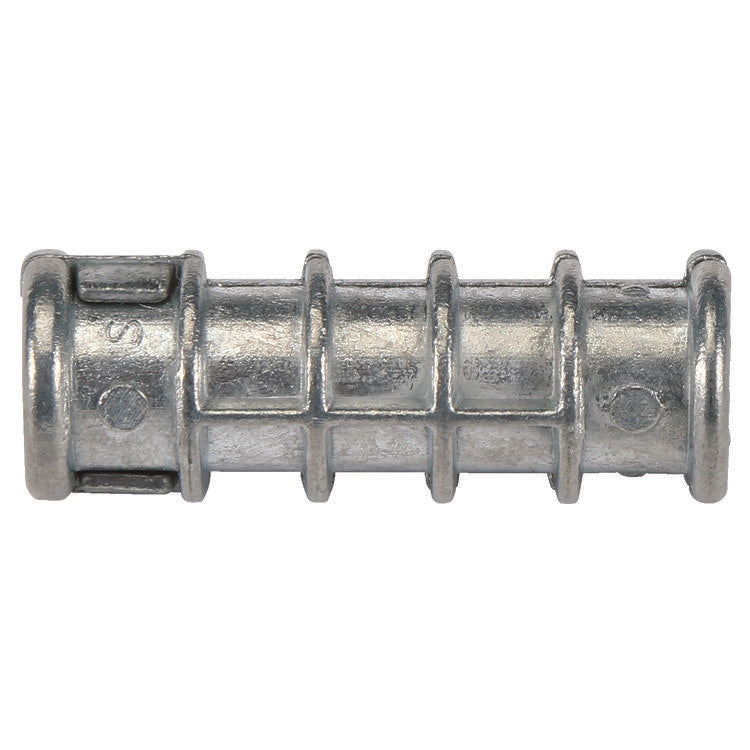

DeWALT® 01151-PWR Short Shell Expansion Anchor, 3/8 in Dia, 1-3/4 in OAL, 5/8 in Drill, Zamac Alloy
Skip to product information
DeWALT® 01151-PWR Short Shell Expansion Anchor, 3/8 in Dia, 1-3/4 in OAL, 5/8 in Drill, Zamac Alloy
01151-PWR
The Lag Shield™ is a screw style anchor designed for use with lag bolts. It is suitable for use in concrete and the mortar joints of block or brick walls. In harder masonry materials, short style Lag Shield™ are used to reduce drilling time. The long style version is used in soft or weak masonry to better develop strength. The Lag Shield™ is not recommended for overhead or life safety applications.
Features
- Internally threaded anchor for easy bolt removability and service work
- Ideal for use in masonry materials
- Ultimate load capacity: 855 lb tensile strength when embedded in 2000 psi, 855 lb tensile strength when embedded in 4000 psi and 910 lb tensile strength when embedded in 6000 psi compressive strength concrete
Specifications
| Overall Length | 1-3/4 in |
| Material | Zamac Alloy |
| Type | Short |
| Thread Length | 1 in |
| Diameter | 3/8 in |
| Drill Size | 5/8 in |
| Tensile Strength | 910 lb |
| Minimum Embedment Depth | 1-3/4 in |
| Shear Strength | 1450 lb |
