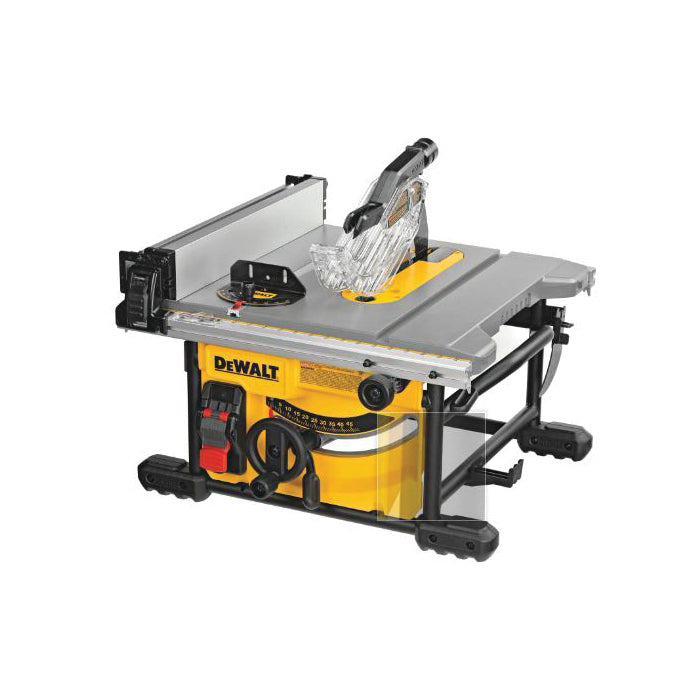

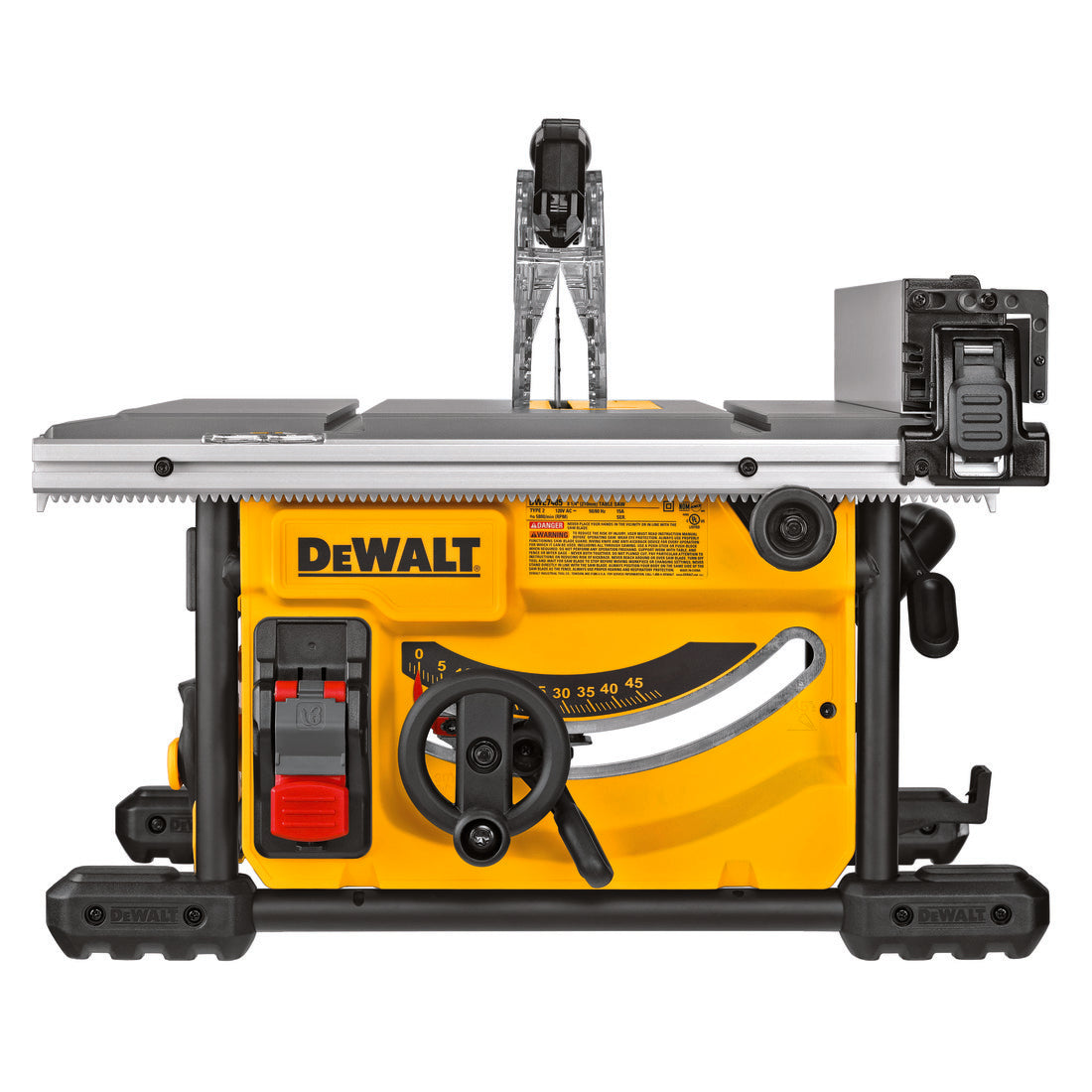

DeWALT® DWE7485 Compact Jobsite Table Saw, 8-1/4 in Dia Blade, 5/8 in Arbor/Shank, 1-3/4 in 45 deg Capacity, 2-9/16 in 90 deg Capacity
Skip to product information
DeWALT® DWE7485 Compact Jobsite Table Saw, 8-1/4 in Dia Blade, 5/8 in Arbor/Shank, 1-3/4 in 45 deg Capacity, 2-9/16 in 90 deg Capacity
DWE7485
Maximized for accuracy and capacity, this 8-1/4 instable saw includes on-board storage for the blade guard assembly, non-through cut riving knife, anti-kickback pawls, blade change wrenches, miter gauge and push stick. The powerful 15 A, 5800 rpm motor allows users to complete a majority of applications. The rack and pinion fence allows for fast, easy adjustments and provides the capacity to rip 4 x 8 sheet goods.
Features
- Compact size for easy transportation and storage
- 24-1/2 in of rip capacity for ripping 4 x 8 plywood or OSB sheets
- Blade brake
- Metal roll cage base for jobsite durability

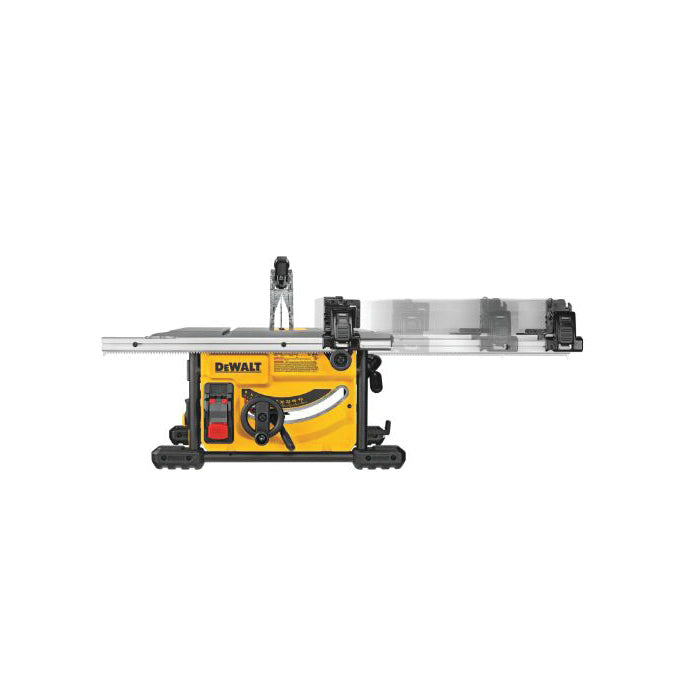

- Rack and pinion telescoping fence rails make fence adjustments fast, smooth and accurate
- Power loss reset prevents accidental restarts following a power disruption when the tool is left in the on position
- On-board storage for guard, fence, wrenches and miter gauge

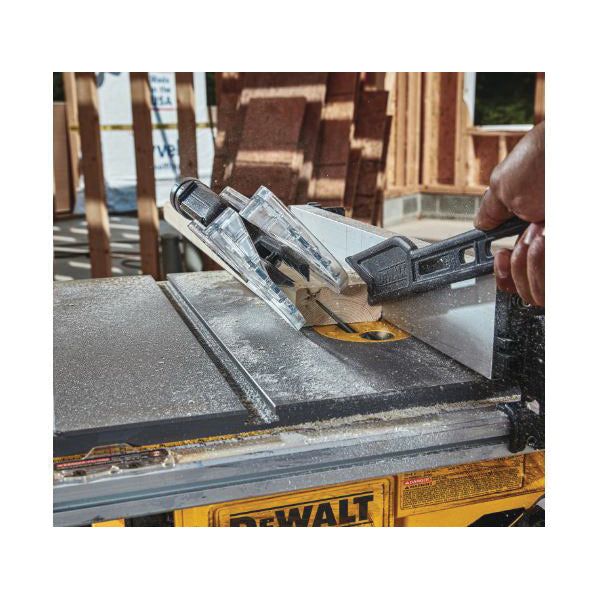

- Site Pro modular guarding system allows for tool-free adjustments of the guarding
Specifications
| Type | Compact |
| Dimensions | 22-3/4 in L x 13 in H |
| Tool Kit | Bare Tool |
| Speed | 5800 rpm |
| Amperage Rating | 15 A |
| Arbor/Shank Size | 5/8 in |
| Blade Diameter | 8-1/4 in |
| Cutting Capacity Rip Left | 12 in |
| Cutting Capacity Rip Right | 24-1/2 in |
| 45 DEG Capacity | 1-3/4 in |
