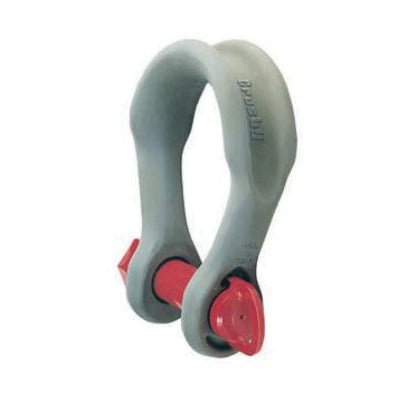

Crosby® 1021285 G-2160 Wide Body Shackle, 40 ton Load, 3.6 in, 2 in, Hot Dipped Galvanized

Crosby® Wide Body Shackle, Series: G-2160, 40 ton, 3.6 in, 2 in Pin Dia, 8.06 in Inner Length, 3 in Inner Width, 2-7/8 in Opening, 4 in Eye Outer Size, 13.62 in Overall Length, 9.28 in Overall Width, Forged Alloy Steel Body, Hot Dipped Galvanized

Features

• All ratings are in metric tons, embossed on side of bow
• Can be used to connect synthetic web slings, synthetic round slings or wire rope slings
• Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and eliminates need for a thimble
• Increases usable sling strength minimum of 15% and greatly improves life of wire rope slings
• Approved for use at -40 to 400 deg F
• Bow and bolt are certified to meet charpy impact testing of 42 J min average at -4 deg F
• All 2160 shackles are individually proof tested and magnetic particle inspected
• Shackles requiring ABS, Lloyds and other certifications are available upon special request and must be specified at time of order
• Type approved and certification to DNV rules for certification of lifting appliances and are produced in accordance with DNV MSA requirements
• Databook is provided that includes required documents serialization/identification, material testing and proof testing
• Look for the Red Pin® the mark of genuine Crosby® quality
