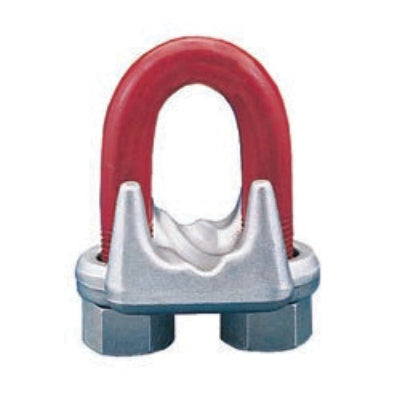

Crosby® 1010337 G-450 Red-U-Bolt Wire Rope Clip, 1-5/8 in, Forged Steel, 8 Clips, 58 in Rope Turn Back
Skip to product information
Crosby® 1010337 G-450 Red-U-Bolt Wire Rope Clip, 1-5/8 in, Forged Steel, 8 Clips, 58 in Rope Turn Back
1010337
Crosby® Wire Rope Clip, Red-U-Bolt, Series: G-450, 1-5/8 in Cable, Forged Steel, 8 Clips Minimum, 58 in Rope Turn Back, 430 ft-lb Minimum, Galvanized
Features
- Each base has a product identification code (PIC) for material traceability the name Crosby® or CG and a size forged into it
- Based on the catalog breaking strength of wire rope, Crosby® wire rope clips have an efficiency rating of 90%
- Entire clip is galvanized to resist corrosive and rusting action
- All clips are individually bagged or tagged with proper application instructions and warning information
- Importantly, these wire rope clips meet other critical performance requirements including fatigue life, impact properties and material traceability
- Look for the Red-U-Bolt® your assurance of genuine Crosby® clips
Specifications
| Finish | Galvanized |
| Series | G-450 |
| Material | Forged Steel |
| Type | Red-U-Bolt |
| Cable Size | 1-5/8 in |
| Minimum Number of Clips | 8 |
| Minimum Torque | 430 ft-lb |
| Rope Turn Back | 58 in |
