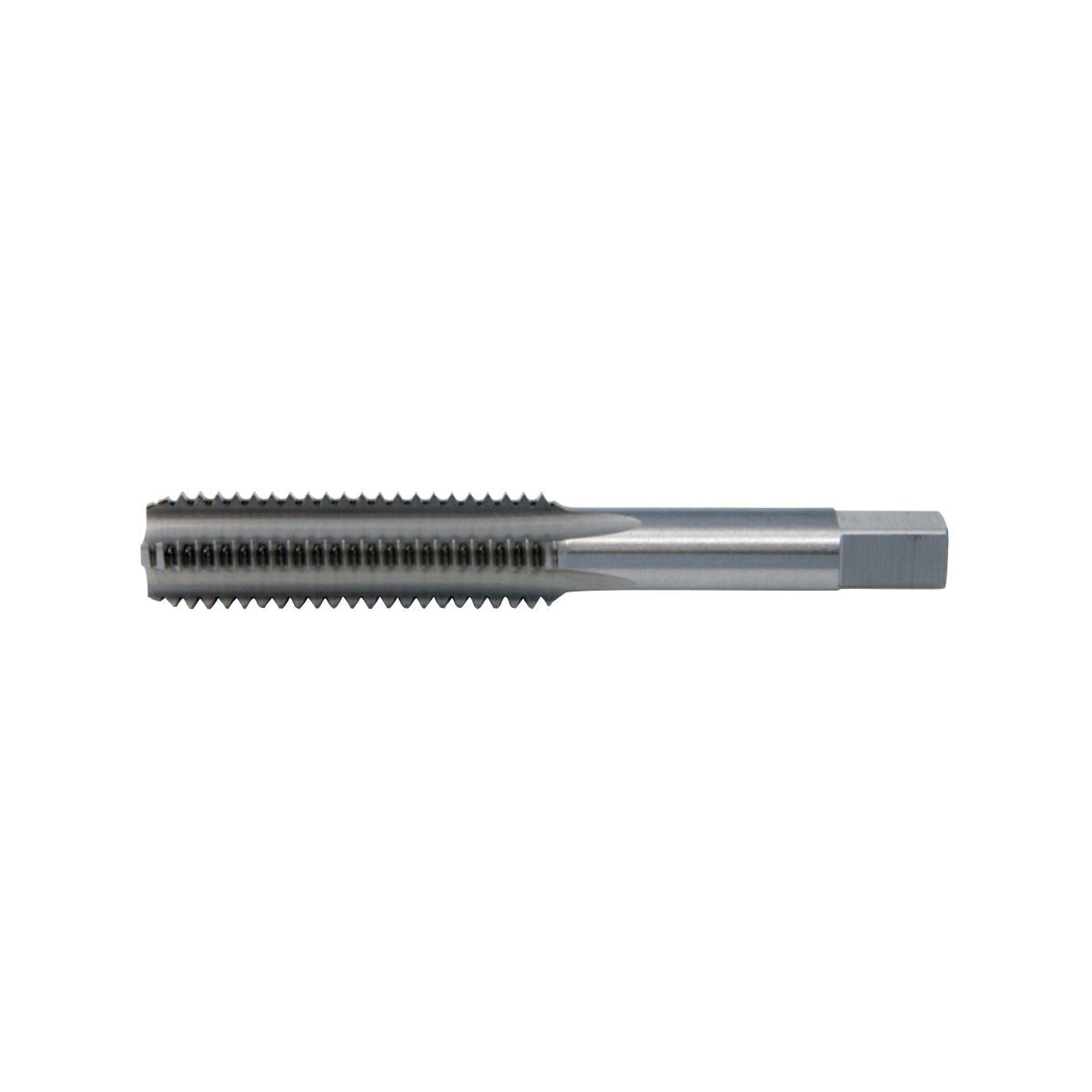

Cle-Line® C62103 0403 General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, 1-8 Thread, H4 Thread Limit, Bottoming Chamfer, 2 Flutes, Bright, HSS
Skip to product information
Cle-Line® C62103 0403 General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, 1-8 Thread, H4 Thread Limit, Bottoming Chamfer, 2 Flutes, Bright, HSS
C62103
Cle-Line® Straight Flute Hand Tap, General Purpose Standard, Series: 0403, Measurement System: Imperial, Ground/UNC Thread Standard, 1-8 Thread, Bottoming Chamfer, 2 Flutes, HSS, Bright, Right Hand Cutting Direction, 2-1/2 in Thread Length, 5-1/8 in Overall Length, 0.8 in Shank Diameter, Cast Iron, Steel and Non-Ferrous Materials Material Application, H4 Thread Limit
Specifications
| Overall Length | 5-1/8 in |
| Series | 0403 |
| Material | HSS |
| Measurement System | Imperial |
| Type | General Purpose Standard |
| Thread Length | 2-1/2 in |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Finish/Coating | Bright |
| Material Application | Cast Iron, Steel and Non-Ferrous Materials |
